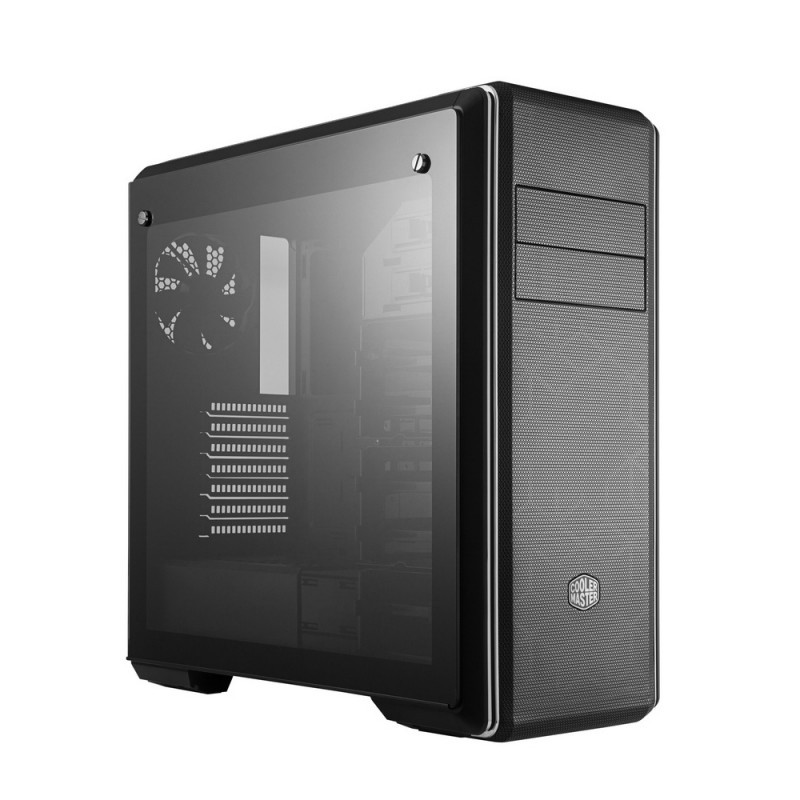

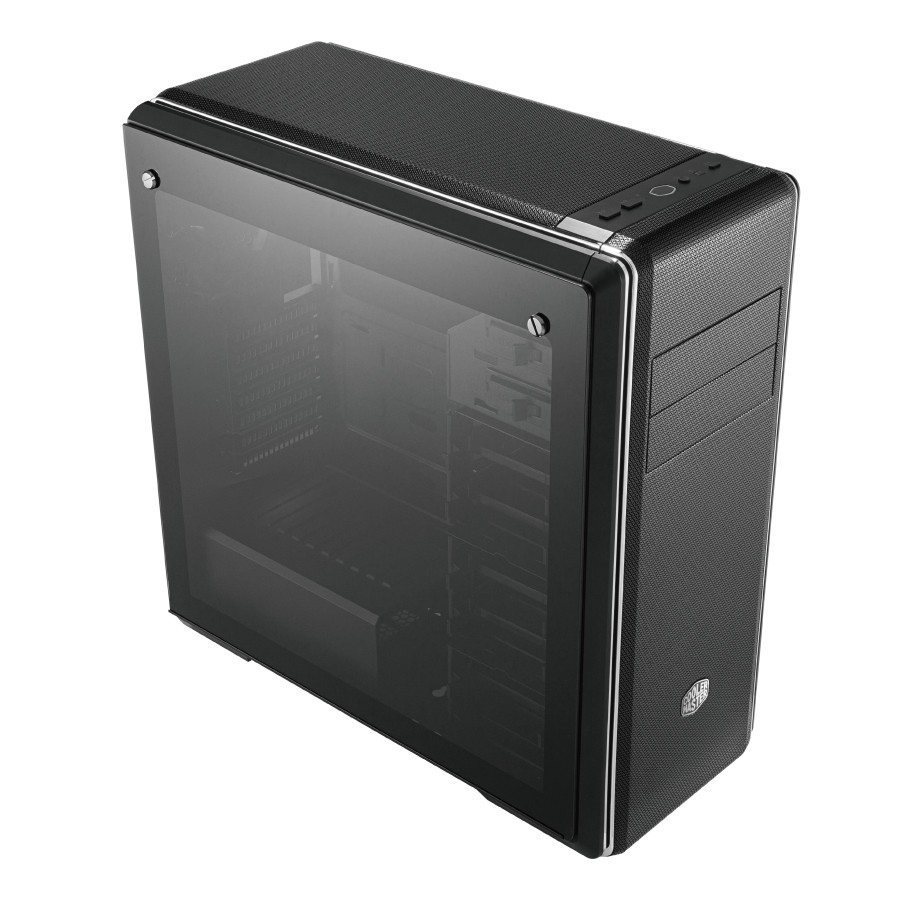

6 Bay HDD Case COOLERMASTER MASTERBOX CM694 #Cooler Master

MODEL NUMBER
MCB-CM694-KN5N-S00 (Steel), MCB-CM694-KG5N-S00 (TG)
SERIES
MasterBox Series
SIZE
Mid Tower
AVAILABLE COLOR(S)
Black
MATERIALS
Steel, Plastic, Tempered Glass, Mesh
DIMENSIONS (L X W X H)
Steel: 493mm x 220mm x 506mm (incl. Protrusions), Steel: 482mm x 220mm x 477mm (excl. Protrusions), TG: 493mm x 224mm x 506mm (incl. Protrusions), TG: 482mm x 224mm x 477mm (excl. Protrusions)
MOTHERBOARD SUPPORT
Mini ITX, Micro ATX, ATX, E-ATX
EXPANSION SLOTS
7
5.25" DRIVE BAYS
2
2.5" / 3.5" DRIVE BAYS (COMBO)
6 (3x drive cages)
2.5" DRIVE BAYS
8 (2 + 6 combo)
I/O PANEL
2x USB 3.0 Type A, 1x USB 3.1 Type-C, 1x 3.5mm Headset Jack (Audio+Mic)
PRE-INSTALLED FANS - FRONT
2x 120mm Fan (1200 RPM ± 200 RPM, 3 pin connector)
PRE-INSTALLED FANS - REAR
1x 120mm fan (1200 RPM ± 200 RPM, 3 pin connector)
FAN SUPPORT - FRONT
3x 120mm / 2x 140mm (wo/ODD), 2x 120mm / 2x 140mm (w/ODD)
FAN SUPPORT - TOP
3x 120mm, 2x 140mm
FAN SUPPORT - REAR
1x 120mm
RADIATOR SUPPORT - FRONT
120mm*, 140mm*, 240mm*, 280mm**, 360mm** (*remove 2 out of 3 drive cages) (**remove 2 out of 3 drive cages & ODD cage)
RADIATOR SUPPORT - TOP
120mm, 140mm, 240mm, 280mm, 360mm, (mount radiator below the bracket & fans above the bracket for maximum compatibility)
RADIATOR SUPPORT - REAR
120mm
CLEARANCE - CPU COOLER
171mm
CLEARANCE - GFX
410mm/16.1", 350mm (with stabilizer), 280mm (with stabilizer + drive cage)
CLEARANCE - PSU
276mm, 160mm (drive cage rear position)
POWER SUPPLY SUPPORT
Bottom mount, ATX PS2
DUST FILTERS
Top, Front, Bottom
CABLE ROUTING
27-29mm
EAN CODE
4719512087305 (Steel), 4719512087299 (TG)
UPC CODE
884102059759 (Steel), 884102059742 (TG)
