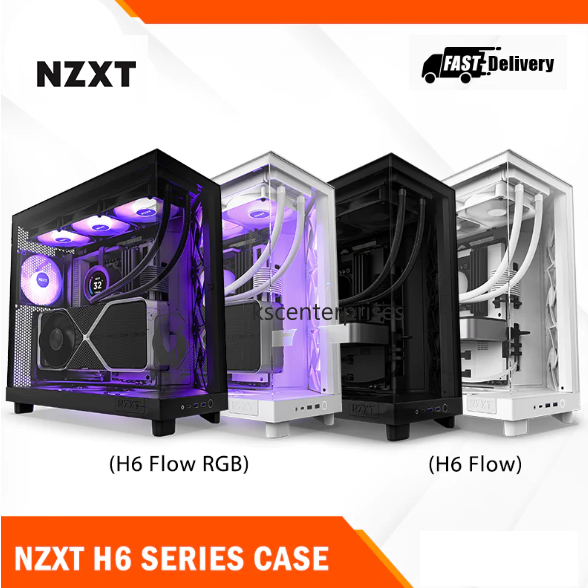

NZXT H6 FLOW BLACK / WHITE / RGB ATX PC CASE

Tech Specs
KEY SPECS

Motherboard Support:ATX, Micro-ATX, Mini-ITX

Enclosure Type:Mid-Tower

Case Material:SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only)

DIMENSIONS

Height (with feet):435 mm / 17.13 in

Width:287 mm / 11.3 in

Depth:415 mm / 16.34 in

Weight:9.4 kg

COMPATIBILITY & CLEARANCE

CPU Cooler Height:163 mm / 6.42 in

GPU Length:365 mm / 14.37 in

PSU Length:200 mm / 7.87 in

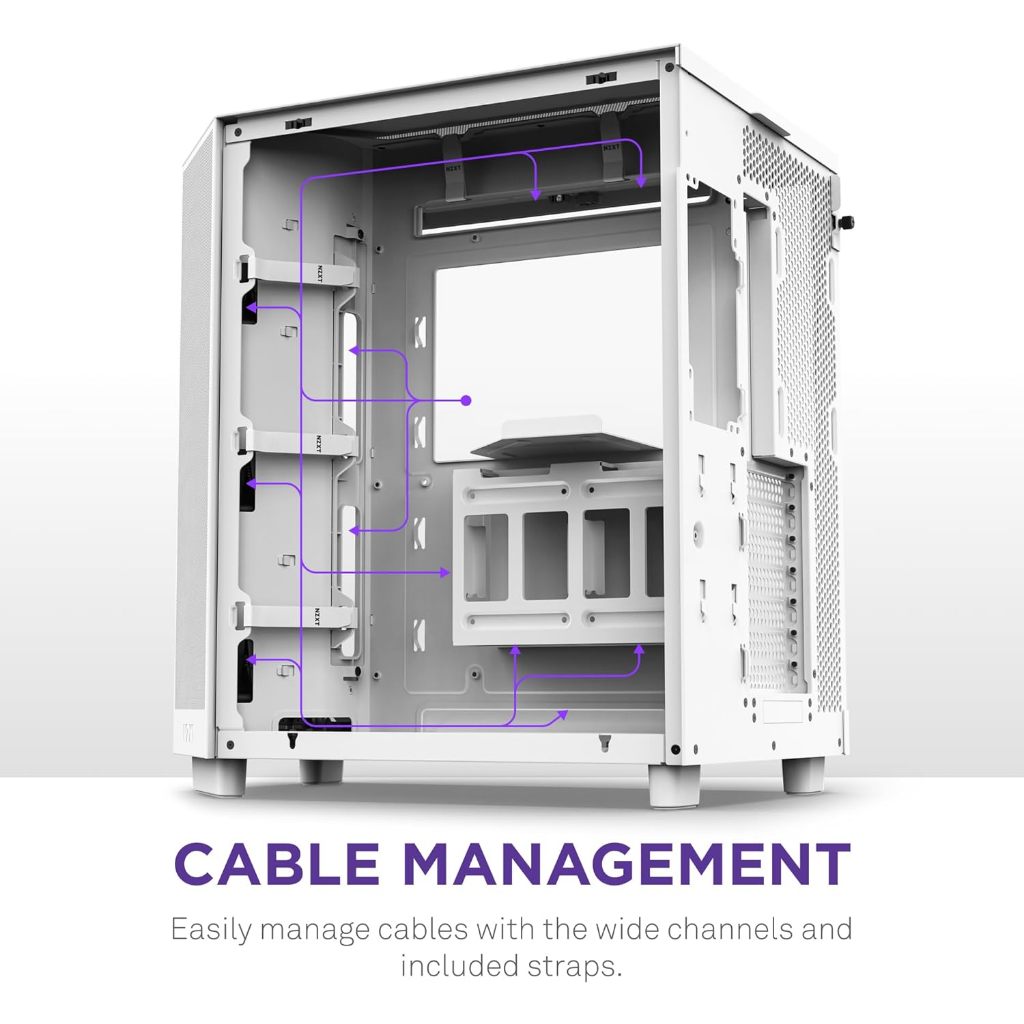

Cable Management:91 mm / 3.58 in

Top Radiator:30 mm / 1.18 in

FRONT I/O PORTS

USB 3.2 Gen 1 Type-A:2

USB 3.2 Gen 2 Type-C:1

Headset Audio Jack:1

EXPANSION SLOTS

Standard:7

Vertical:0

DRIVE BAYS

2.5":2

3.5":1

FAN SUPPORT

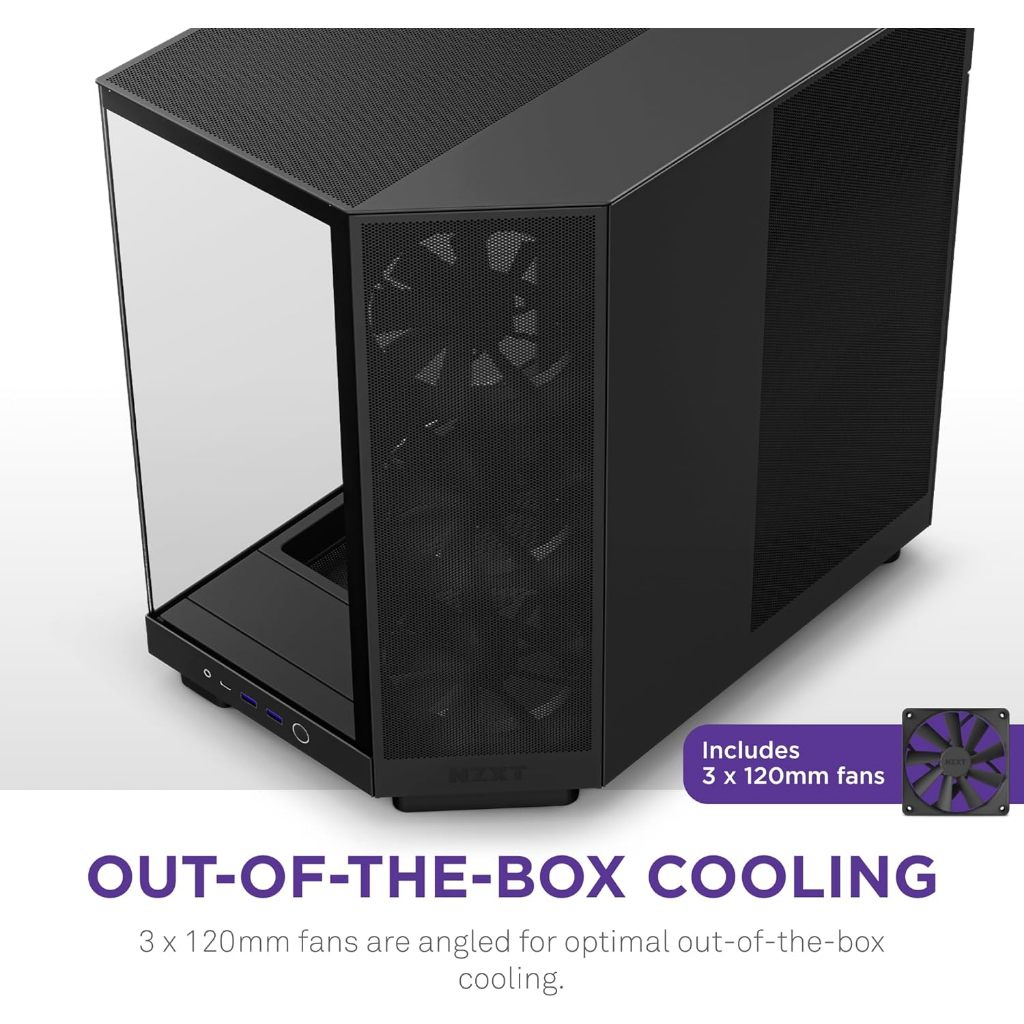

Front-Right:3 x 120 mm (3 x F120Q included)

Top:3 x 120 mm / 2 x 140 mm

Bottom:2 x 140 mm

Rear:1 x 120 mm

Filters:High-Performance Mesh

RADIATOR SUPPORT

Top:Up to 360 mm

Rear:Up to 120 mm

FAN SPECS

Model:F120Q Airflow Fan (Case Version)

Speed:1200 ± 240RPM

Airflow:62.18 CFM

Static:1.05 mm - H2O

Noise:25.1 dBA

Fan Connector:3-pin

GENERAL

Warranty:2 Years

Model Number:CC-H61FW-01 (White) / CC-H61FB-01 (Black)

UPC:810074844130 (White) / 810074844147 (Black)

EAN:5056547204048 (White) / 5056547204055 (Black)
