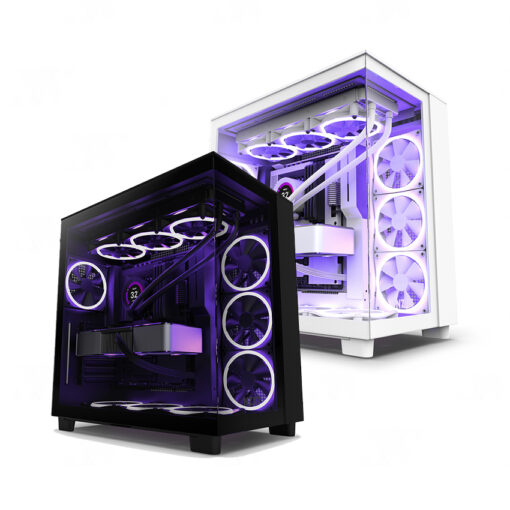

NZXT H9 Elite ATX Tempered Glass

KEY SPECS

Motherboard Support:Mini-ITX, Micro-ATX, ATX

Enclosure Type:Mid-Tower

Case Material:SGCC Steel, Tempered Glass

DIMENSIONS

Height:495mm (With Feet)

Width:290mm

Depth:466mm

Weight:13.1 kg

COMPATIBILITY & CLEARANCE

CPU Cooler Clearance:Up to 165mm

GPU Clearance:Up to 435mm

PSU Clearance:200mm

Cable Management:91mm

FRONT I/O PORTS

USB 3.2 Gen 1 Type-A:2

USB 3.2 Gen 2 Type-C:1

Headset Audio Jack:1

EXPANSION SLOTS

Standard:7

Vertical:0

DRIVE BAYS

2.5":4+2

3.5":2

FAN SUPPORT

Side:3 x 120mm

Top:3 x 120mm / 2 x 140mm

Bottom:3 x 120mm / 2 x 140mm

Rear:1 x 120mm

Filters:All Air Intakes

RADIATOR SUPPORT

Side:Up to 360mm

Top:Up to 360mm

Bottom:Up to 360mm

Rear:Up to 120mm

FAN SPECS

Model:F120Q (Case Version)

Speed:1200 ± 240RPM

Airflow:62.18 CFM

Static:1.05 mm - H2O

Noise:25.1 dBA

Fan Connector:3-pin

FAN SPECS

Model:F120RGB Duo

Speed:500 ± 1800RPM

Airflow:48.58 CFM

Static:2.42mm - H2O

Noise:29 dBA

Fan Connector:4-pin

GENERAL

Warranty:2 Years

Model Number:CM-H91EW-01 (White) / CM-H91EB-01 (Black)

UPC:810074842525 (White) / 810074842518 (Black)

EAN:5056547202440 (White) / 5056547202433 (Black)
