HYTE Y40 Modern Aesthetic Panoramic Tempered Glass Mid-Tower ATX Computer Gaming

Product Features
Multi-Dimensional Design

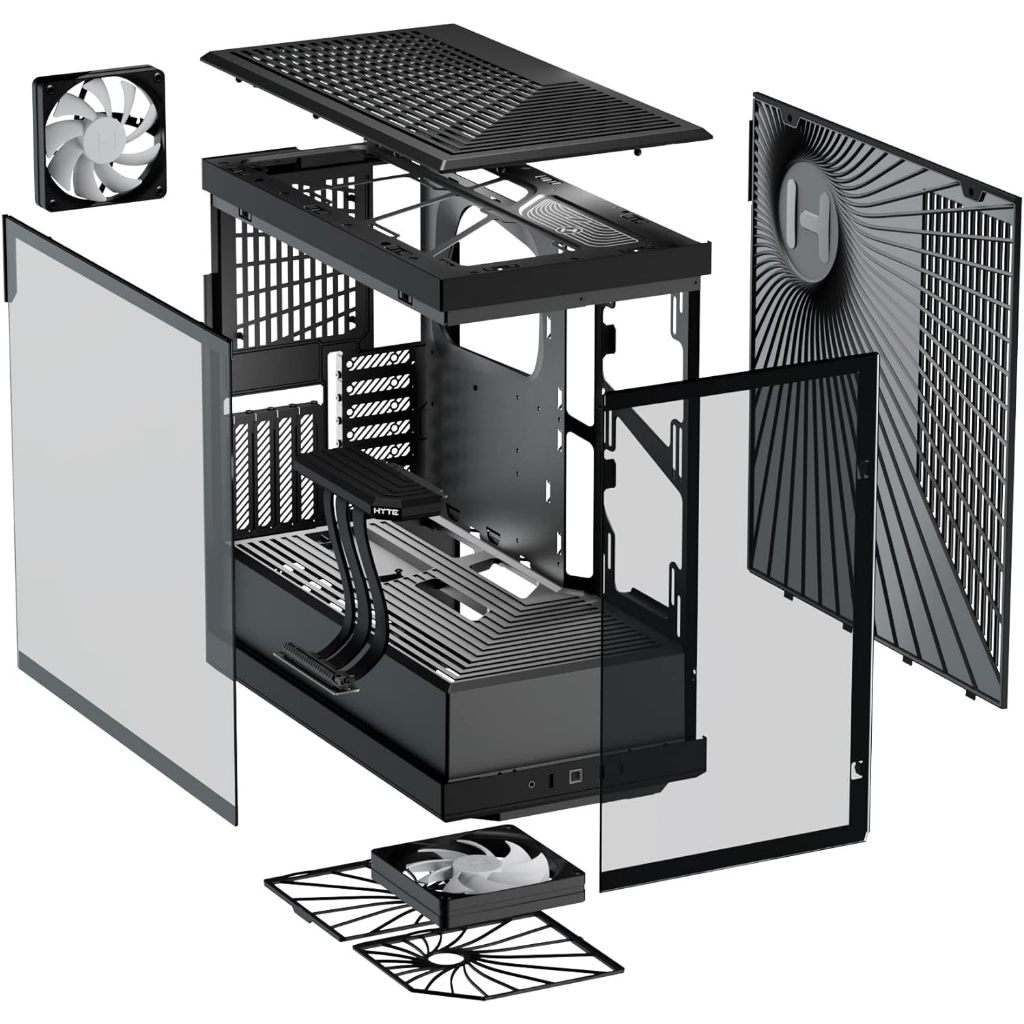

Details connect every part into a deeply harmonic design structure. Every edge is adorned in tightly controlled beveling for s-tier aesthetics. 2-Piece Panoramic Glass set the stage for a completely unobstructed view of your system’s performance.

Ginormous Vertical Graphics Support

Y40 grows GPU support to 4 full slots with additional airflow space between the edge of the card and the glass. An intake fan below the power supply shroud provides fresh air upwards to the GPU to improve cooling further.

Included Luxury PCIE 4.0 Riser Cable

A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card.

Cooling

Y40 comes with 2x 120mm fans pre-installed, one beneath the floor and one at the rear. The side mount can fit up to a 280mm radiator with a combined thickness of up to 120mm allowing for large 60mm+ radiators to be used for custom loop configurations, and the top mount can fit up to a 360mm radiator for dual radiator setups. Y40 also brings support for large air coolers over 180mm in height, allowing for almost every CPU cooler on the market.



Tech Specs
Type

ATX Mid Tower

Volume

50L

Case Dimensions

439mm x 240mm x 472mm

Motherboard Support

ITX, mATX, ATX

Power Supply

ATX up to 224mm in length

Video Card Max Dimensions

422mm length, 94mm height (80mm height or less recommended for best cooling)

Fan Support (Side)

2x 120mm/140mm

Fan Support (Top)

Top: 3x 120mm

Fan Support (Rear)

1x 120mm (1x 120mm, 1300 rpm included)

Fan Support (Bottom)

1x 120mm/140mm (1x 120mm, 1300 rpm included)

Radiator Support (Side)

120, 140, 240, 280mm up to 120mm thick

Radiator Support (Top)

120, 240, 360mm

Radiator Support (Rear)

120mm

CPU Cooler Height

183mm

Storage

1 x 3.5" HDD or 2 x 2.5" SSD

Expansion Slots

4 + 6 half-height

Interfaces

PCI Express Riser Cable

4.0 x 16 (included)

Front USB 3.0

2

Front USB 3.2 Type-C

1

Audio/Mic Jack

1

Dust Filters

Top, Side, Bottom (x2)

RGB Lighting

None
