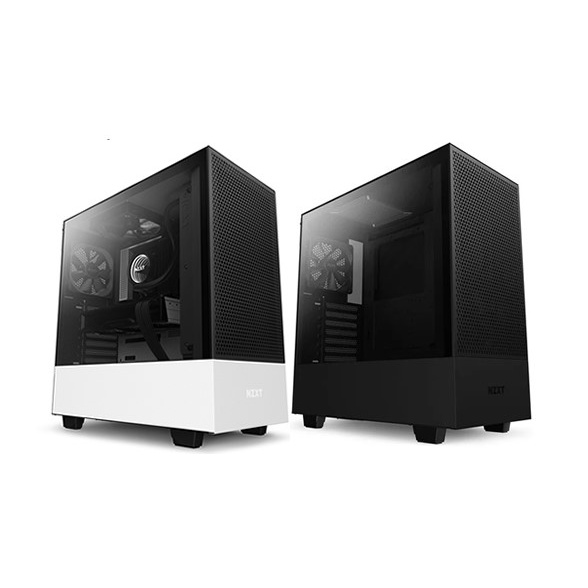

CASE NZXT H510 AIRFLOW ATX TEMPERED GLASS

Tech Specs
Key Specs

Motherboard Support

Mini-ITX, MicroATX, ATX

Enclosure Type

Compact Mid-Tower

Case Material

SGCC Steel, Tempered Glass

Dimensions

Height

460 mm / 18.11 inches

Width

210 mm / 8.26 inches

Depth

428 mm / 16.85 inches

Weight

6.6 kg / 14.5 lb

Compatibility & Clearance

Max CPU Cooler Clearance

165 mm

Max GPU Clearance

360 mm

Front Fan & Radiator Clearance

60 mm

Cable Management

19 - 23 mm

Front I/O Ports

USB 3.2 Gen 1 Type-A

1

USB 3.2 Gen 2 Type-C

1

Headset Audio Jack

1

Expansion Slots

Standard

7

Vertical

-

Drive Bays

2.5"

2 + 1

3.5"

2 + 1

Fan Support

Front

2 x 120mm / 2 x 140mm

Top

1 x 120mm / 1 x 140mm

Rear

1 x 120mm

Filters

All air intake

Included Fans

Front

1 x Aer F 120mm (Case Version)

Top

-

Rear

1 x Aer F 120mm (Case Version)

Radiator Support

Front

280mm

Rear

120mm

Fan Specs

Model

Aer F 120mm (Case Version)

Speed

1,200 ± 200RPM

Airflow

50.42 CFM

Noise

28 dBA

Bearing

Rifle Bearing

Fan Connector

3-pin

General

Warranty

2 years

White SKU

Model Number

CA-H52FW-01

UPC

815671019585

EAN

5060301699254

Black SKU

Model Number

CA-H52FB-01

UPC

815671019578

EAN

5060301699247
