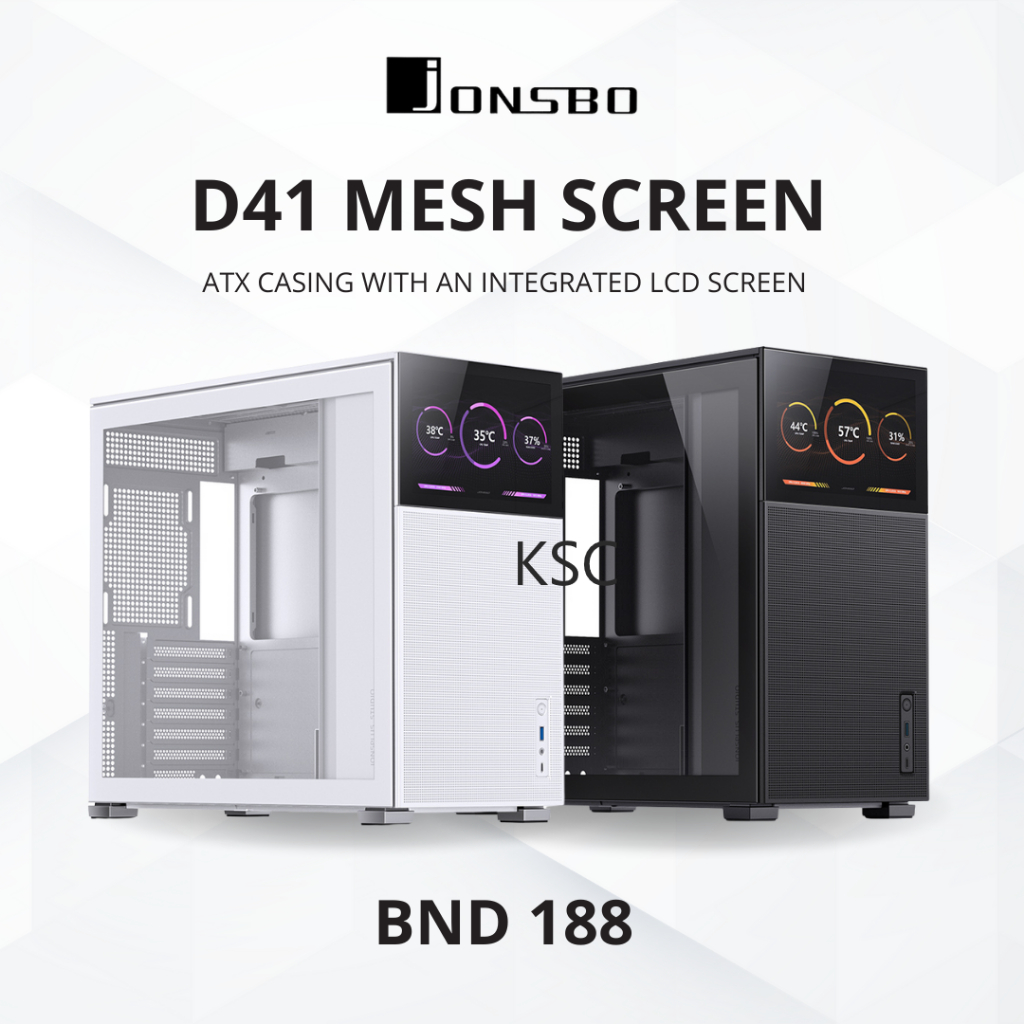

CASE JONSBO D41 MESH Screen Edtion ATX BLACK / WHITE

Screen display spec：

model：24.6mm(W) * 131.7(H) * 205.3(L)

Display size：8〞 Color TFT-LCD Colors：16.7M Resolution：1280*800

Response Time：30ms(Typ.) Brightness：300cd/m2(Typ.) Contrast Ratio：1000（Typ.）

I/O：MINI-HDMI*1(Video Signal) TYPE-C*1 Refresh Rate(max.)：60Hz Working Temperture：0-50℃



Product Specification：

Model：D41 MESH SCREEN White

Dimension: 205mm (W) * 392mm(H) *440mm(D) (Vol: 35.4L)

*Depth does not include the PCI brackets outside the chassis, height does not include case stand

205mm (W) * 407mm(H) * 452mm(D) (overall size)

Material：0.6mm+0.7mm steel panel

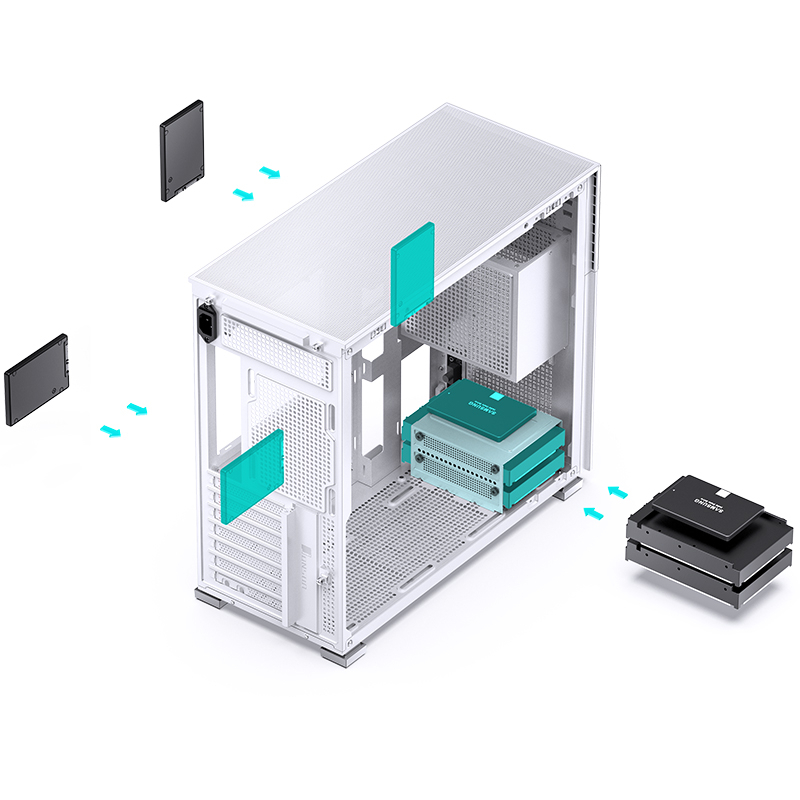

Drive Bay：2.5〞SSD*3+3.5〞HDD*2

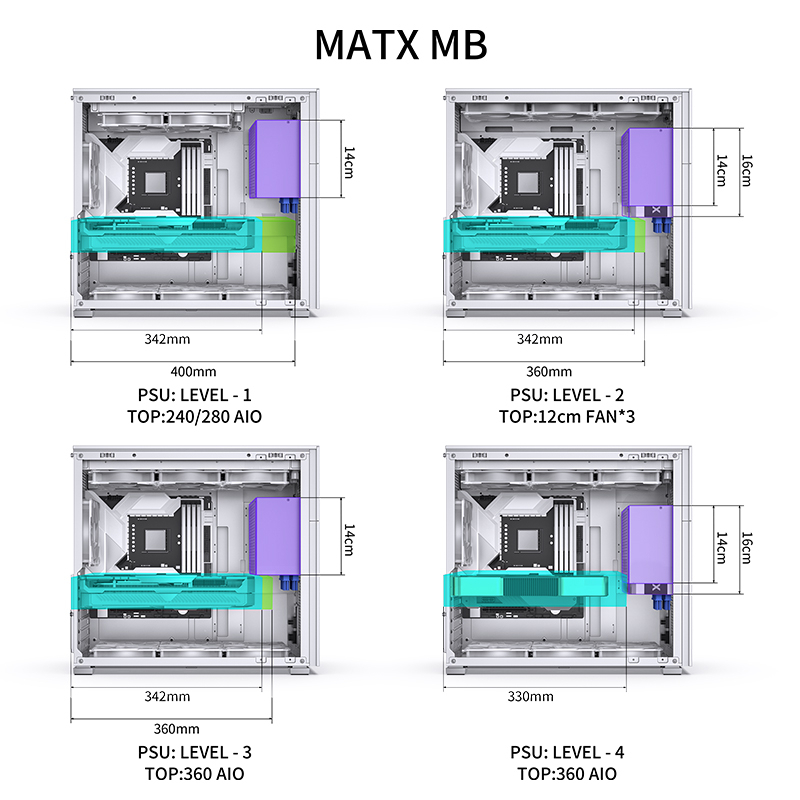

Motherboard：ATX / M-ATX


PCI expansion slots：7


Front I/O：USB3.2 Gen 2 Type-C*1 / USB3.0*1/Audio & Mic*1

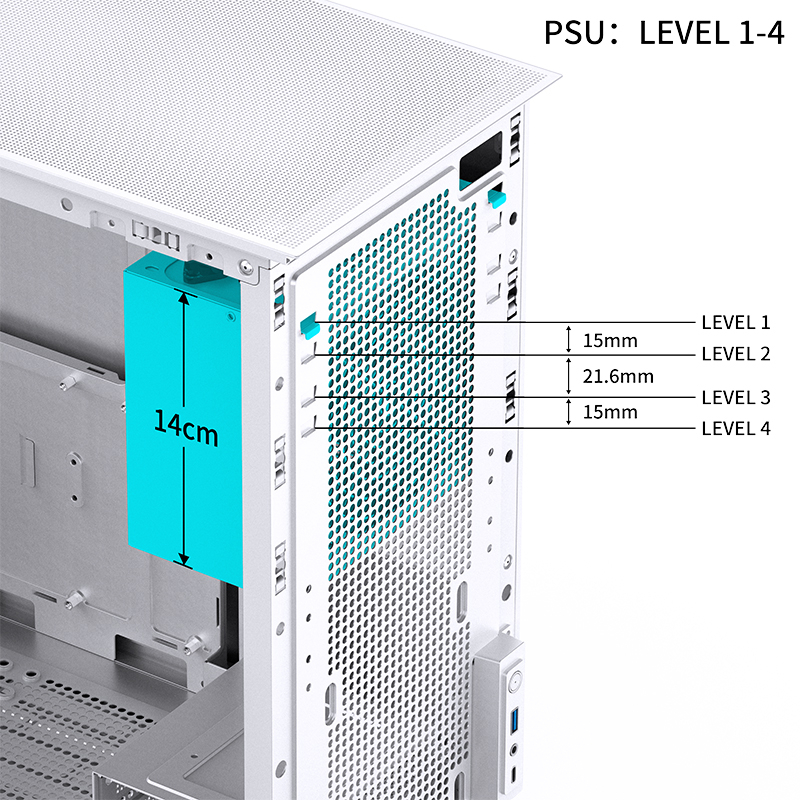

Power supply support：ATX


CPU cooler support：168mm

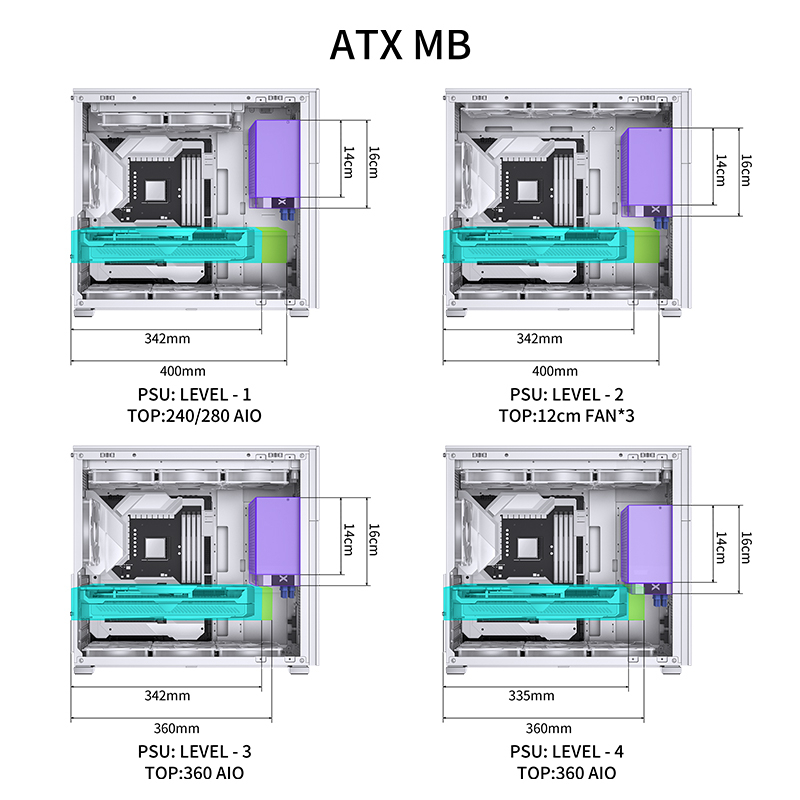

Graphics card support：330-400mm


Fan mounting position：Top 120mm*3 or 140mm*2 Rear 120*1mm Bottom 120mm*3 or 140mm*2 Front 120mm*1


Radiator support： Top 240/280/360*1 Rear 120*1 Bottom 240/360*1

Weight: Net 6.78KG
