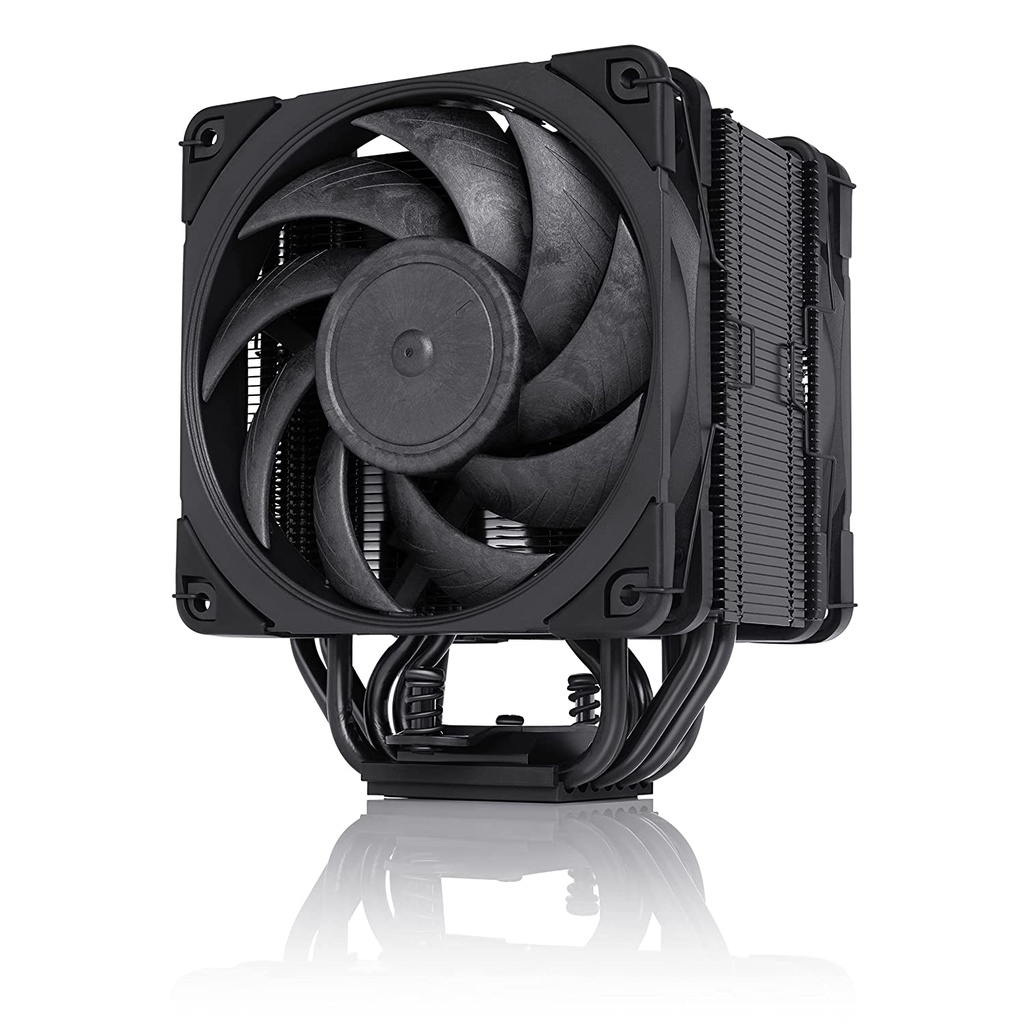

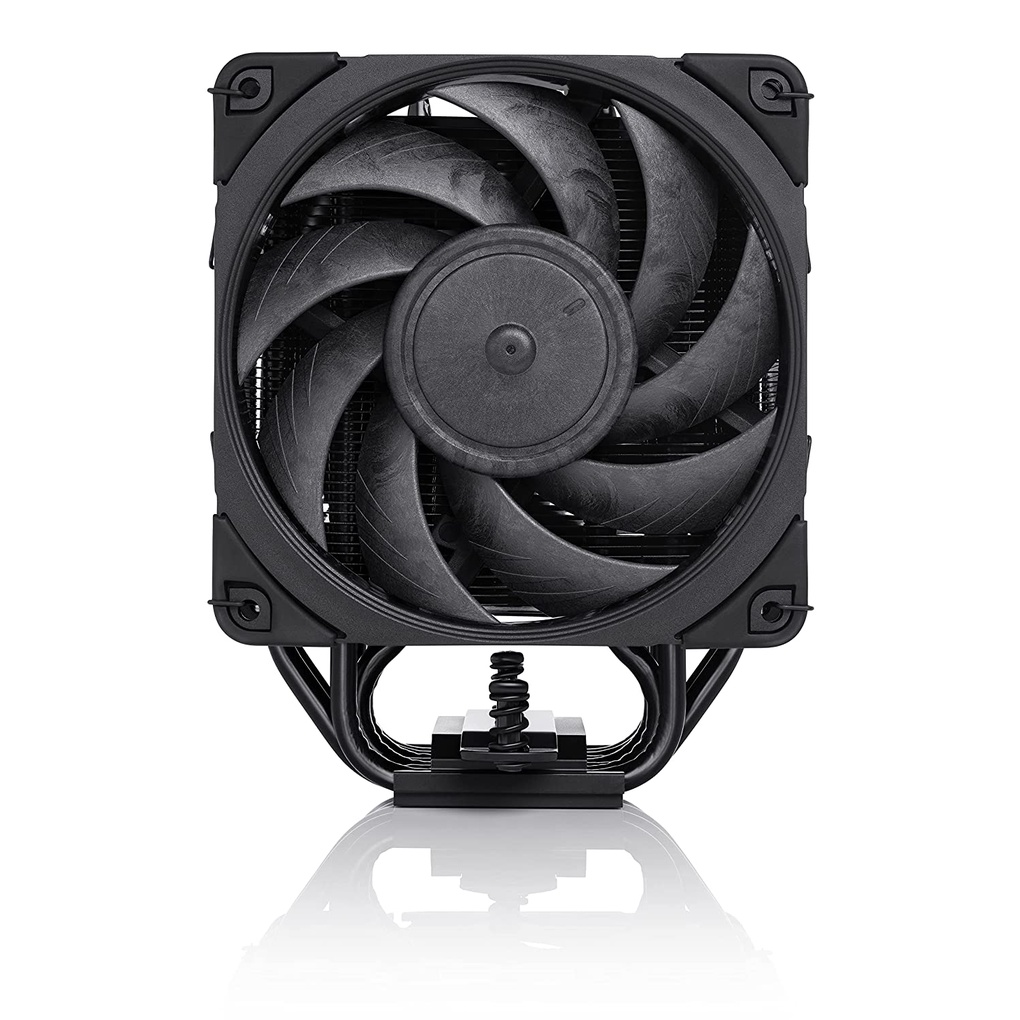

Noctua NH-U12A chromax.Black, 120mm Single-Tower CPU AIR Cooler, Intel LGA 1700 and AMD AM4 Ryzen (Black)

Cooler Specification
Socket compatibility Intel LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, LGA1156, LGA2011, LGA2066 and AMD AM4, AM3(+), AM2(+), FM1, FM2(+)
Height (without fan) 158 mm
Width (without fan) 125 mm
Depth (without fan) 58 mm
Weight (without fan) 760 g
Height (with fan) 158 mm
Width (with fan) 125 mm
Depth (with fan) 112 mm
Weight (with fan) 1220 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 169
Max. TDP see NSPR
Fan compatibility 120x120x25

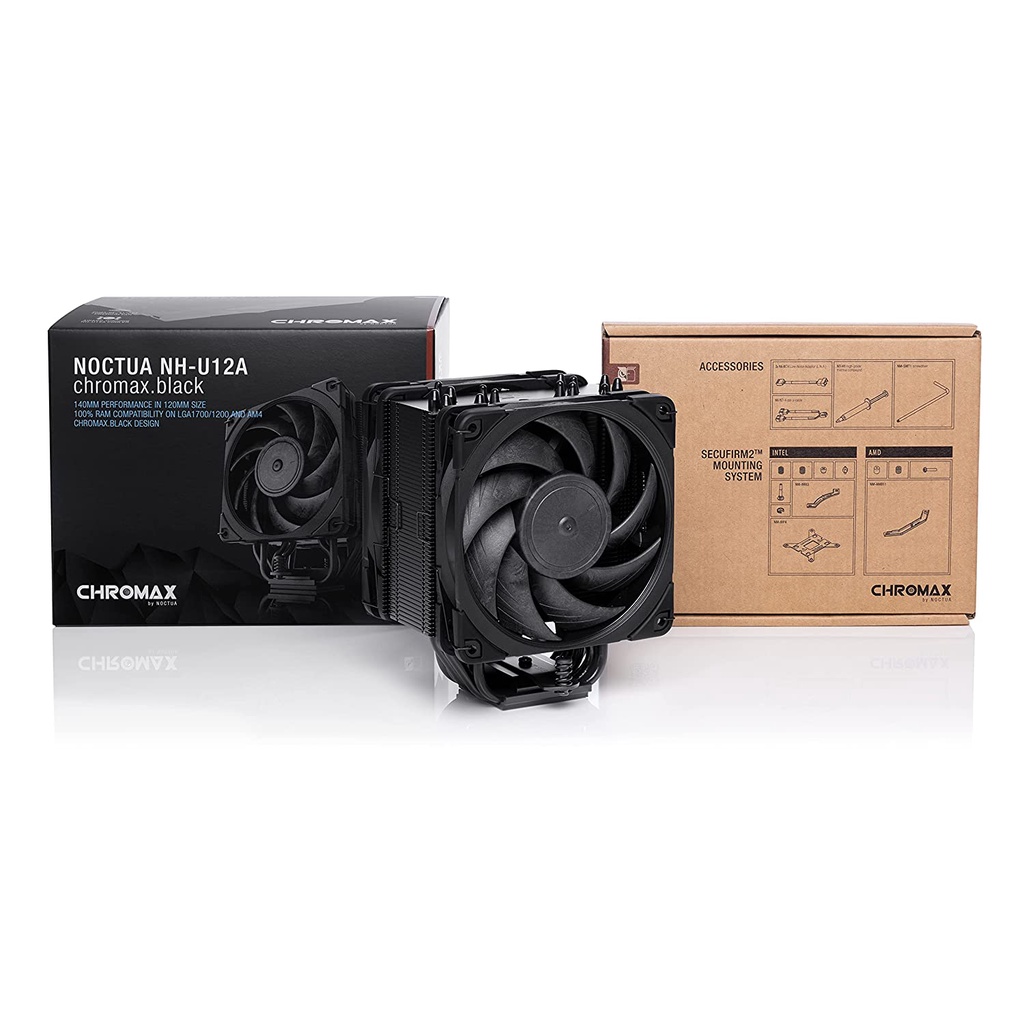

Scope of delivery
Black NH-U12A heatsink
2x NF-A12x25 PWM chromax.black premium fan
2x NA-RC14 Low-Noise Adaptor (L.N.A)
NA-YC1 4-pin PWM y-cable
NT-H1 high-grade thermal compound
Black SecuFirm2™ mounting kit
Noctua Metal Case-Badge
Warranty 6 Years
FAN Specification
Model Noctua NF-A12x25 PWM chromax.black
Bearing SSO2
Max. rotational speed (+/- 10%) 2000 RPM
Max. rotational speed with L.N.A. (+/- 10%) 1700 RPM
Min. rotational speed (PWM, +/-20%) 450 RPM
Max. airflow 102,1 m³/h
Max. airflow with L.N.A. 84,5 m³/h
Max. acoustical noise 22,6 dB(A)
Max. acoustical noise with L.N.A. 18,8 dB(A)
Voltage range 12 V
MTTF > 150.000 h
