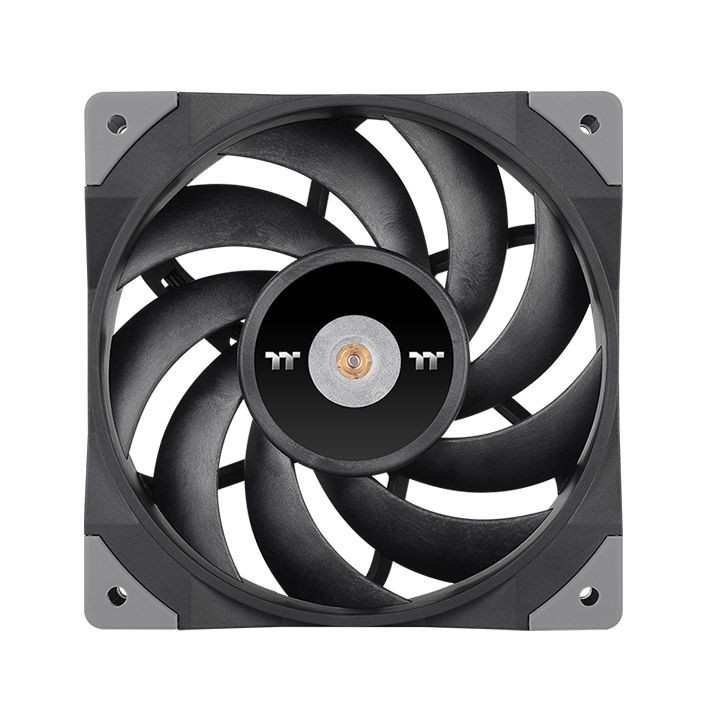

Thermaltake TOUGHFAN 12 High Static Pressure Radiator Fan (Single Fan Pack) & TOUGHFAN 14 High Static # TOUGHFAN TURBO

Thermaltake TOUGHFAN PWM-controlled high static pressure fan features an optimized structure to maximize high-end cooling needs.

P/N
CL-F117-PL12BL-A
FAN DIMENSION
120 x 120 x 25 mm
FAN STARTED VOLTAGE
9.0 V
FAN RATED VOLTAGE
12 V
RATED CURRENT
0.12 A
POWER INPUT
1.44 W
FAN SPEED
500 ~ 2000 R.P.M
With L.N.C PWM 500~1500 R.P.M
MAX. STATIC PRESSURE
2. 41mm-H2O
MAX AIR FLOW
58.35 CFM
NOISE LEVEL
22.3 db-a (without L.N.C)
19.2 db-a (with L.N.C)
BEARING TYPE
Hydraulic Bearing Gen. 2
LIFE EXPECTATION
40,000 hrs, 25℃
CONNECTOR
4 PIN PWM
WEIGHT
212.5 g (Fan*1)

-------------------------------------------------------------------

TOUGHFAN 12 Turbo High Static Pressure Radiator Fan (Single Fan Pack)
CL-F121-PL12GM-A

P/N
CL-F121-PL12GM-A
FAN DIMENSION
120 x 120 x 25 mm
FAN STARTED VOLTAGE
9.0 V
FAN RATED VOLTAGE
12 V
RATED CURRENT
0.23 A
POWER INPUT
2.76 W
FAN SPEED
PWM 500~2500 R.P.M
MAX. STATIC PRESSURE
3.78 mm-H2O
MAX AIR FLOW
72.69 CFM
NOISE
28.1 dB-A
BEARING TYPE
Hydraulic Bearing Gen.2
LIFE EXPECTATION
40,000 hrs,25℃
CONNECTOR
4 PIN PWM
WEIGHT
217.7 g

----------------------------------------------
TOUGHFAN 14 High Static Pressure Radiator Fan (2 Fan Pack)

P/N
CL-F085-PL14BL-A
FAN DIMENSION
140 x 140 x 25 mm
FAN STARTED VOLTAGE
9.0 V
FAN RATED VOLTAGE
12 V
RATED CURRENT
0.34 A (Fan x1)
RATED VOLTAGE
4.08 W (Fan x1)
POWER INPUT
PWM 500~2000 R.P.M
With L.N.C PWM 500~1300 R.P.M
MAX. AIR PRESSURE
3.54 mm-H2O
MAX AIR FLOW
119.1 CFM
NOISE
33.2 dB-A
With L.N.C 25.2 dB-A
BEARING TYPE
Hydraulic Bearing Gen.2
LIFE EXPECTATION
40,000 hrs,25℃
CONNECTOR
4 PIN PWM
WEIGHT
240.7 g

----------------------------------------------
TOUGHFAN 14 High Static Pressure Radiator Fan (1 Fan Pack)

P/N
CL-F118-PL14BL-A
FAN DIMENSION
140 x 140 x 25 mm
FAN STARTED VOLTAGE
9.0 V
FAN RATED VOLTAGE
12 V
RATED CURRENT
0.34 A (Fan x1)
POWER INPUT
4.08 W (Fan x1)
FAN SPEED
PWM 500~2000 R.P.M
With L.N.C PWM 500~1300 R.P.M
MAX. AIR PRESSURE
3.54 mm-H2O
MAX AIR FLOW
119.1 CFM
NOISE
33.2 dB-A
With L.N.C 25.2 dB-A
BEARING TYPE
Hydraulic Bearing Gen.2
LIFE EXPECTATION
40,000 hrs,25℃
CONNECTOR
4 PIN PWM
WEIGHT
240.7 g
