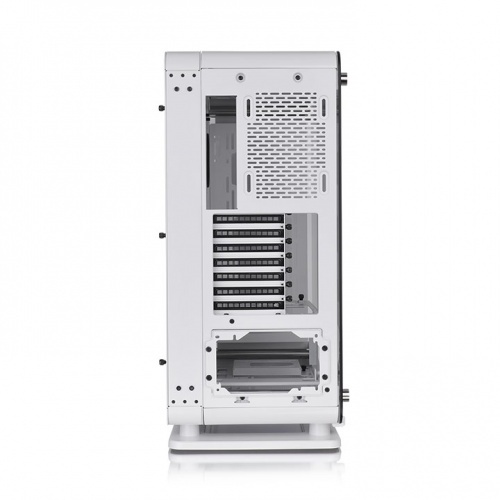

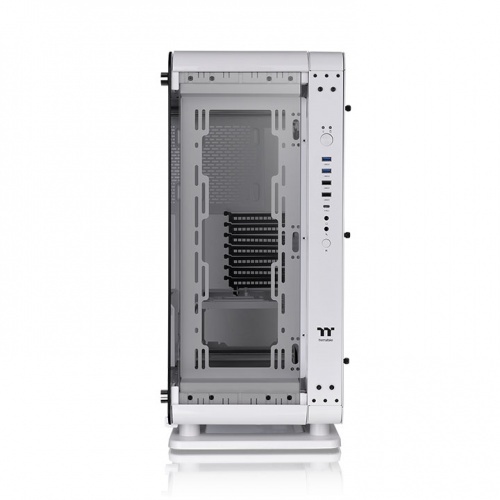

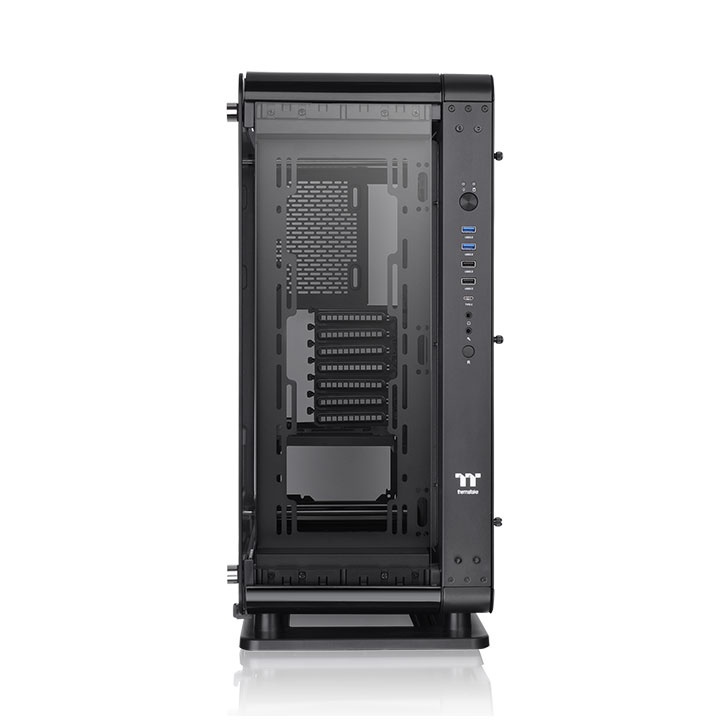

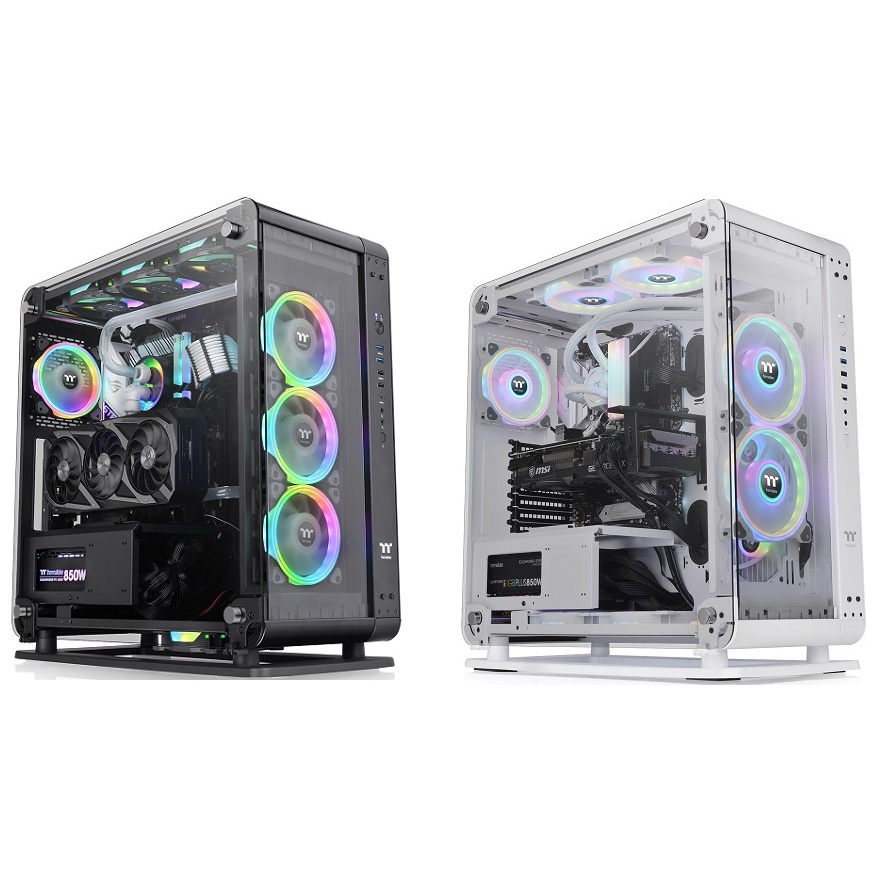

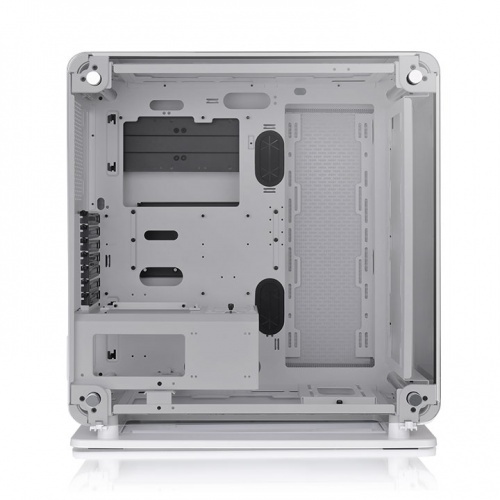

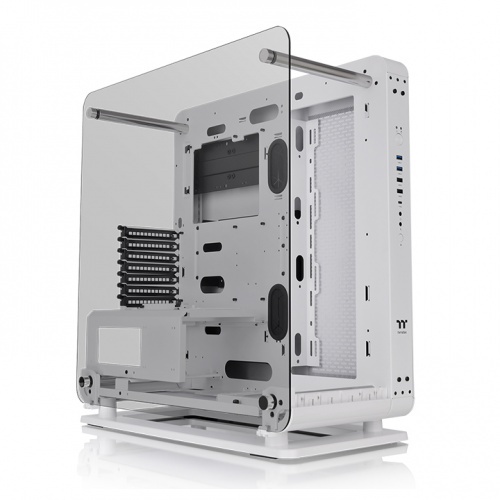

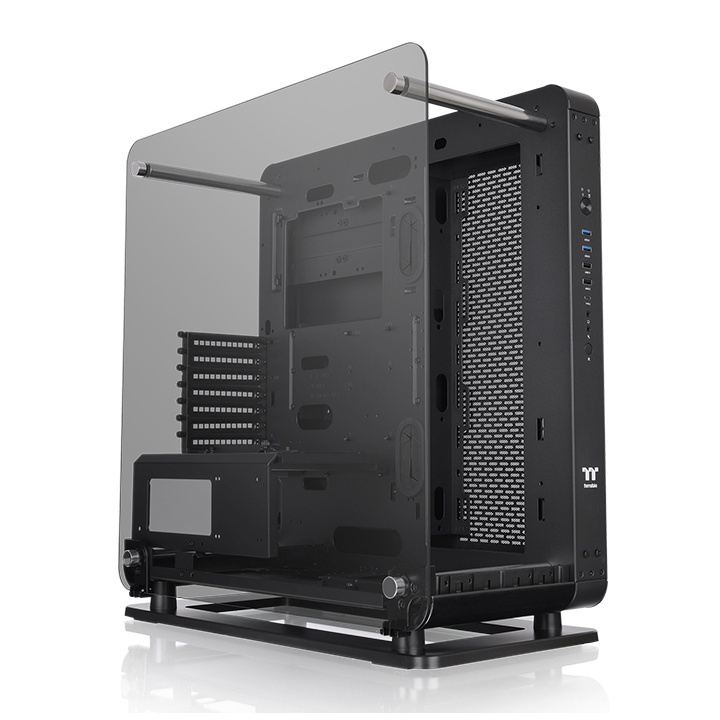

CASE THERMALTAKE CORE P6 TEMPERED GLASS SNOW / BLACK MID TOWER / CTE E600 MX

P/N
CA-1V2-00M6WN-00
ซี่รี่ส์
คอร์
MODEL
Core P6 TG Snow
CASE TYPE
Mid Tower
DIMENSION (H X W X D)
565 x 255 x 530mm
(22.2 x 10 x 20.9 inch)
NET WEIGHT
17.84 kg / 39.33 lbs.
SIDE PANEL
4mm Tempered Glass x 3
COLOR
White
MATERIAL
SPCC
COOLING SYSTEM
-
DRIVE BAYS
-ACCESSIBLE
-HIDDEN
4 x 3.5” or 8 x 2.5”
EXPANSION SLOTS
7 (Rotatable Patented Design)
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 10.5”(CEB)
I/O PORT
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Top:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Rear:
1 x 120mm
Right (M/B Side):
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Bottom:
3 x 120mm, 2 x 120mm or 1 x 120mm
2 x 140mm, 1 x 140mm
RADIATOR SUPPORT
Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear:
1 x 120mm
Right (M/B Side):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Bottom:
1 x 240mm, 1 x 120mm
CLEARANCE
CPU cooler height limitation:
180mm
VGA length limitation:
300mm (With Reservoir)
400mm (Without Reservoir)
430mm (With Radiator)
458mm (Without Radiator)
PSU length limitation:
200mm

--ขอสงวนสิทธิ์ในรายละเอียดสินค้า เนื่องจากพื้นที่ไม่พออธิบายแบบละเอียด โปรดศึกษาเพิ่มเติม
--ข้อมูลอ้างอิงจากหน้าเพจ https://th.thermaltake.com/

สรุป
-E600 ร่นใหม่มีสีพิเศษฉลอง25ปี

ข้อแตกต่างรุ่น TG กับ air
-พัดลมมีไฟกับไม่มีไฟตามรุ่นสินค้า
-รายละเอียดdimensionเหมือนกัน
-แตกต่างหน้ากากตรงลวดลาย


----- E600 Series

SPECIFICATION
P/N
CA-1Y3-00M6WN-00
SERIES
CTE
CASE TYPE
Mid Tower
DIMENSIONS
558.5 x 270 x 513mm
(21.99 x 10.63 x 20.2 inch)
WEIGHT
16 kg / 35.27 lbs.
SIDE PANEL
4mm Tempered Glass x 2
COLOR
Hydrangea Blue
MATERIAL
SPCC
DRIVE BAYS
2 x 3.5”, 2 x 2.5”
EXPANSION SLOTS
7
MOTHERBOARD
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 10.5” (E-ATX)
I/O PORT
USB 3.0 x 2, Type-c x1, HD Audio x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm ,2x 140mm, 1 x 140mm
Top:
2 x 120mm, 1 x 120mm
Right (M/B Side):
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm ,2x 140mm, 1 x 140mm
Rear:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm ,2x 140mm, 1 x 140mm
Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
RADIATOR SUPPORT
Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Top:
1 x 240mm, 1 x 120mm
Right (M/B Side):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Rear:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Bottom (DIY only):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
CLEARANCE
CPU cooler max height:
166mm
VGA max length:
415mm (with radiator)
443.8mm (without radiator)
PSU max length:
220mm

---------------------------------------------------------------------------------------------------------------------------------------------------

CTE T500 Air / CTE T500 TG ARGB
P/N
CA-1X8-00F1WN-00
ซี่รี่ส์
CTE
CASE TYPE
Full Tower
DIMENSION (H X W X D)
615 x 275 x 516 mm
(24.21 x 10.83 x 20.31 inch)
NET WEIGHT
15.3 kg / 33.73 lbs.
SIDE PANEL
4mm Tempered Glass x 1
COLOR
Black
MATERIAL
SPCC / ABS

***COOLING SYSTEM CTE T500 Air
Front(intake):
140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1
Top(exhaust):
140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1
Rear(intake):
140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1

***COOLING SYSTEM CTE T500 TG ARGB
Front(intake): 140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1
Top(exhaust):
140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1
Rear(intake):
140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1

DRIVE BAYS
4 x 3.5” or 6 x 2.5”
EXPANSION SLOTS
7
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/O PORT
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right:
1 x 120mm, 1 x 140mm
Rear:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Bottom:
1 x 120mm, 1 x 140mm
PSU Cover:
1 x 120mm, 1 x 140mm
RADIATOR SUPPORT
Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm
Top:
1 x 120mm(AIO only)
Rear:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
CLEARANCE
CPU cooler max height: 195mm
VGA max length: 385mm
PSU max length: 180mm

-------------------------------------------------------------------------------------------------------------------------
CTE C700

P/N
CA-1X7-00F1WN-00
ซี่รี่ส์
CTE
CASE TYPE
Mid Tower
DIMENSION (H X W X D)
566.5 x 327.6 x 505.5 mm
(22.3 x 12.9 x 19.9 inch)
NET WEIGHT
15.6 kg / 34.39 lbs.
SIDE PANEL
4mm Tempered Glass x 1
COLOR
Black
MATERIAL
SPCC / ABS

---COOLING SYSTEM CTE C700 AIR---
Front(intake):
140 x 140 x 25 mm CT140 fan
(1500rpm, 30.5 dBA) x 1
Top(exhaust):
140 x 14
